SEW Series

Overview

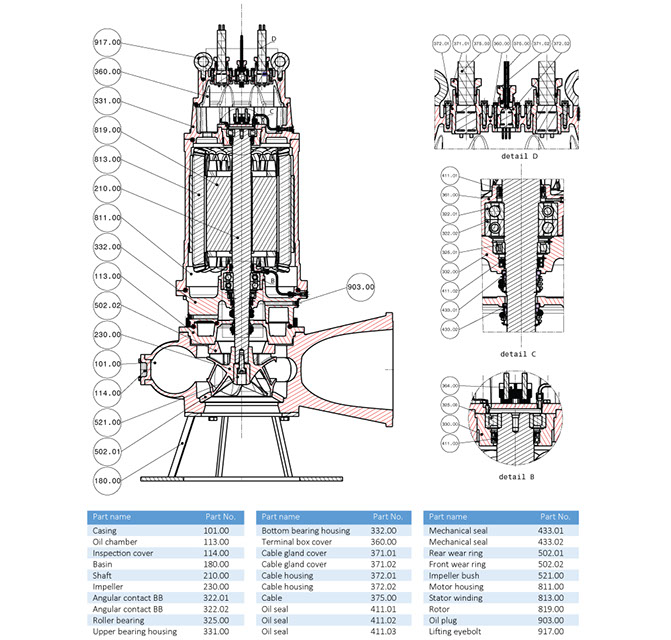

Sectional View

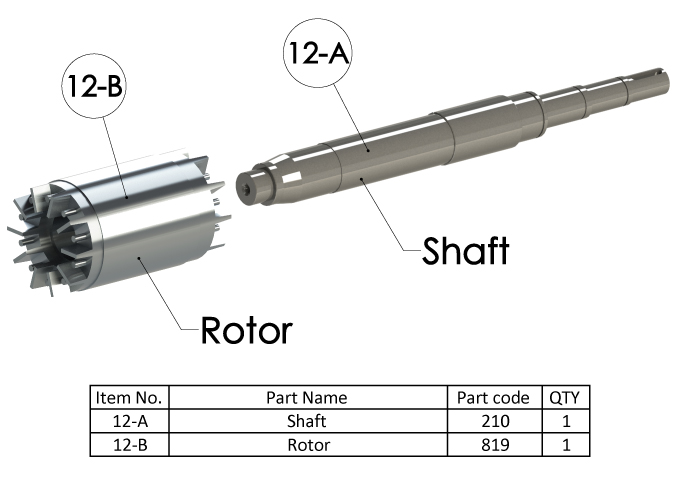

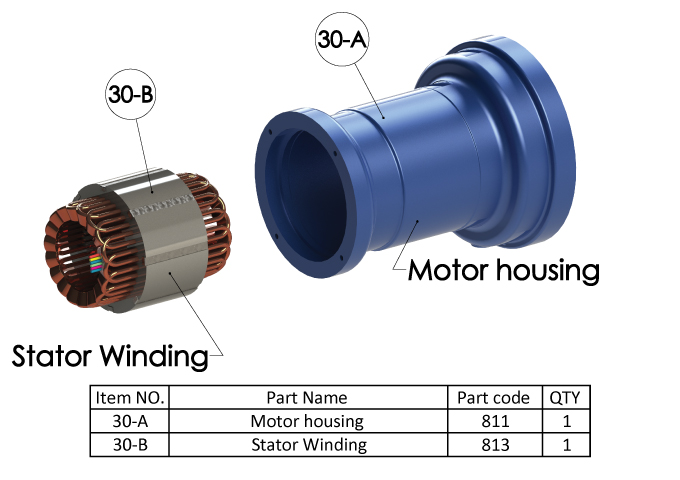

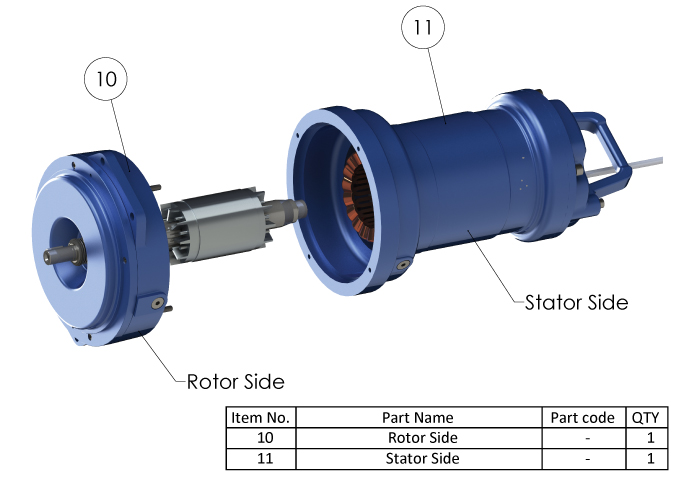

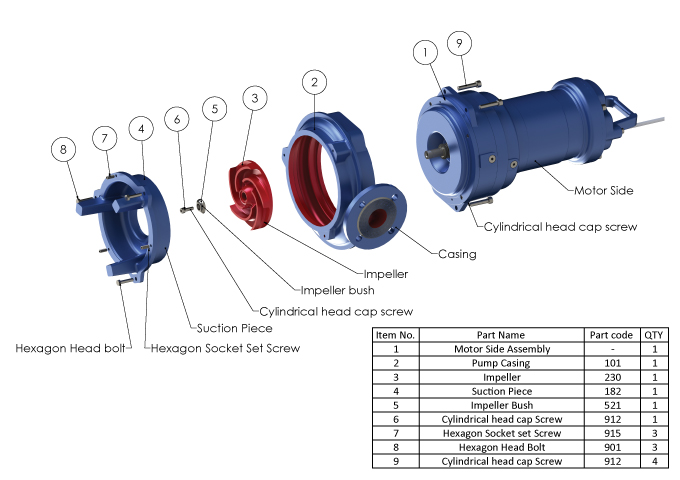

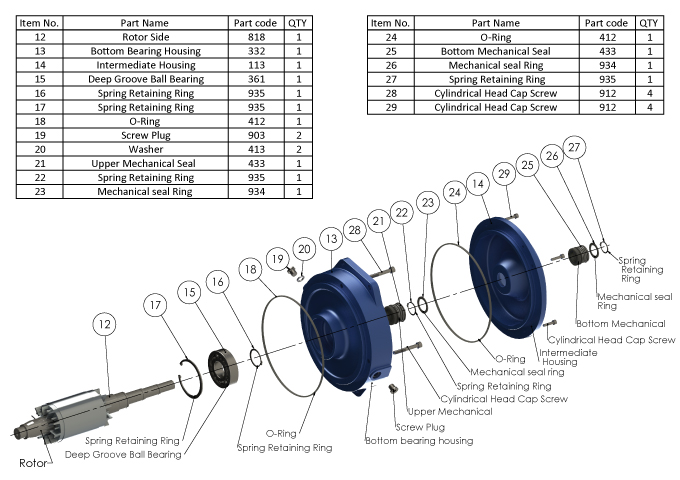

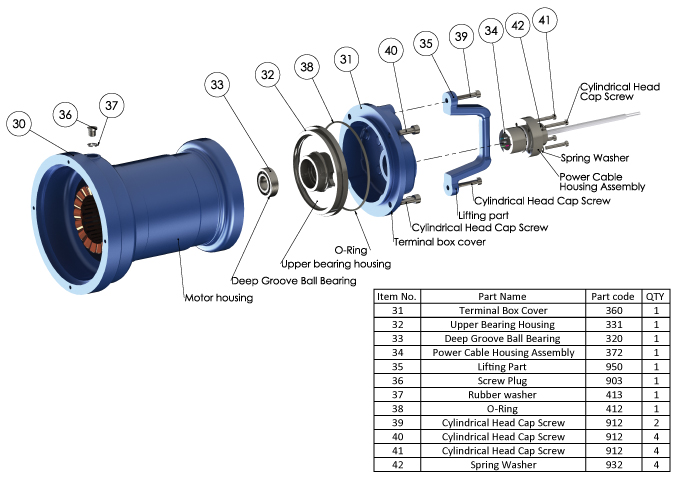

Exploded View

Performance

Documents

Vertical Submersible Sewage Electro pump to Factory Standard



  • Flow rate : Up to 5500 m3/hr
  • Head: Up to 85 m
  • Speed (Max.): 3000 rpm
  • MAWP: 16 bar g
  • Operating temperature: -15 ˚C to 70˚C
  • Design temperature: 40˚C

  • Application

    • Raw sewage
    • Activated & return sludge
    • Industrial wastewater
    • Process media
    • Abrasive laden media
    • Chemically aggressive media
    • Stormwater

  • Benefits

    • Operating costs reduced by trimming the impeller diameter
    • Little wear, low vibration levels
    • Casing sealed reliably
    • Optimum material selection
    • Extended selection chart
    • Lower initial cost

  • Options

    • A wide range of materials for many applications available
    • Non-clogging closed or Semi-open impellers
    • Portable or Stationary Installation
    • Optional sensors and exclusive
    • Local control panel

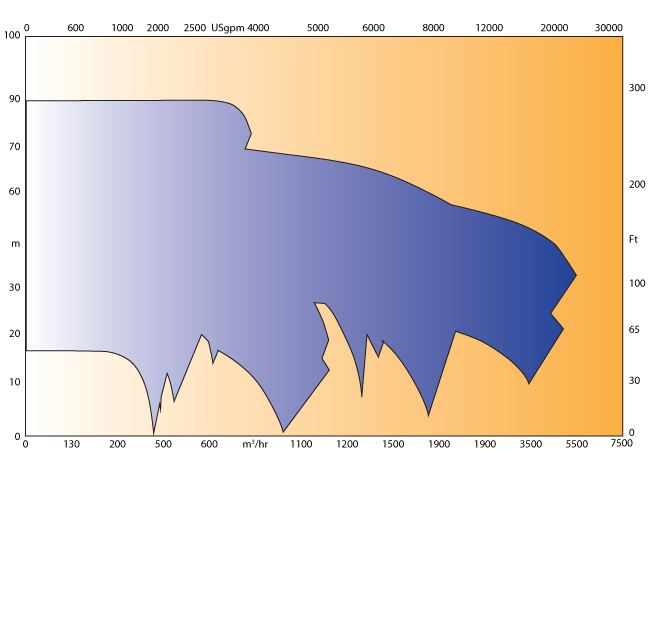

ASK Hydraulic Coverage

SEW series



Other hydraulics on request



  • Catalogues

    SEW-Catalogue 2011-En

  • IOM

    SEW-Installation, Operation & maintenance Manual- 2012 En

    SEW-Installation, Operation & maintenance Manual- 2012 Fa

    Relay MD1594 & MD9512 Installation and Operation Manual - SEW Pumps - 2012

  • Data-sheet Forms

    SEW-Portable-Compact Data-sheet

    SEW-Stationary Installation-Compact Data-sheet
