API 610, BB1 Type Pump

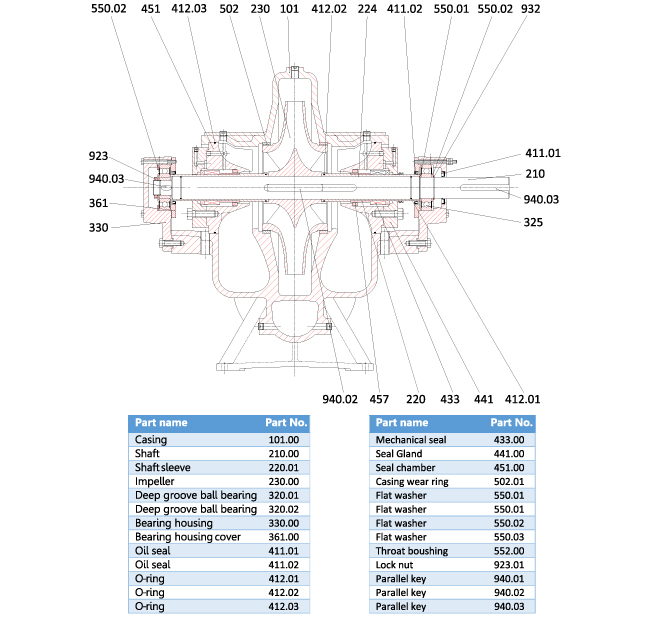

Part List



Horizontal & vertical installation, between bearings, single stage, Double suction, radial impeller, foot mounted, axially split volute casing pump to API 610, 11th, (Also, NFPA 20)


• Flow rate (Max.):   3500 m3/hr

• Differential head (Max.): 160 m

• Speed (Max.): 3000 rpm

• Suction pressure rating: Up to 6 bar g

• MAWP: 16 bar g

• Operating temperature: -15 ˚C to 120 ˚C

• Design temperature: 80 ˚C


  • Water treatment and supply
  • Hydrocarbon transfer
  • Irrigation and drainage systems
  • Power stations, heating systems, and district heating systems
  • Fire fighting
  • Desalination plants
  • Pipeline pumps and pressure boosters
  • Industrial processes
  • Offshore duties
  • Pulp and paper industry
  • Renewable wear rings and shaft sleeves
  • Stuffing box designed to accept a minimum of five rings of packing with lantern ring
  • Solid shaft design ensures a long service life for mechanical seal
  • Generously sized bearings for longer service life reduces maintenance expenditure and work
  • Bearings with grease lubrication, guarantee maximum life at minimum maintenance cost
  • Large impeller inlets diameters for optimum suction behaviour
  • Impeller trimmed to match the specified duty point
  • Smooth operation with low vibration levels
  • Double-entry impeller for axial thrust balancing double suction and lower NPSH performance
  • Several hydraulic systems per pump size



  • Large range of materials for many applications available
  • Shaft sealed by gland packing or mechanical seal
  • Various types of installation
  • Flanges to DIN or ASME
  • Temperature sensors
  • Vibration sensors
  • Electric and diesel drivers available
  • Mobile systems available
  • Standard or heavy duty base plates available

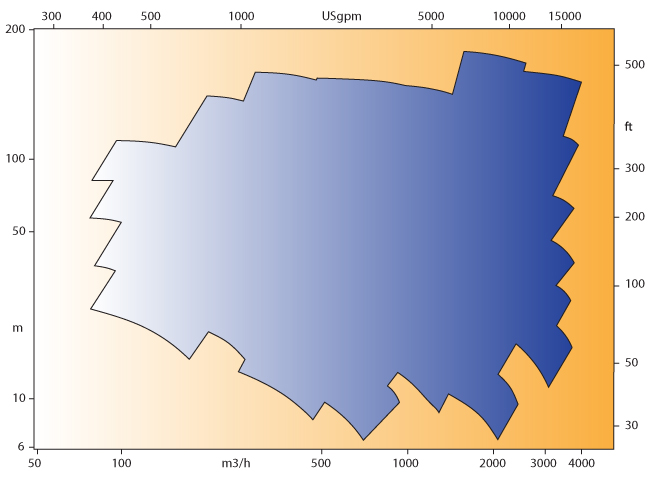

ASK Hydraulic Coverage

BB1 series


Other hydraulics on request


  • Catalogue

    BB1- Catalogue 2015

  • Data-sheet Forms

    BB1-Compact Data-sheet for Horizontal Electro-pump

    BB1-Compact Data-sheet for Diesel-pump

    BB1/V-Compact Data-sheet for Vertical Electro-pump
