OH1 Series

Overview

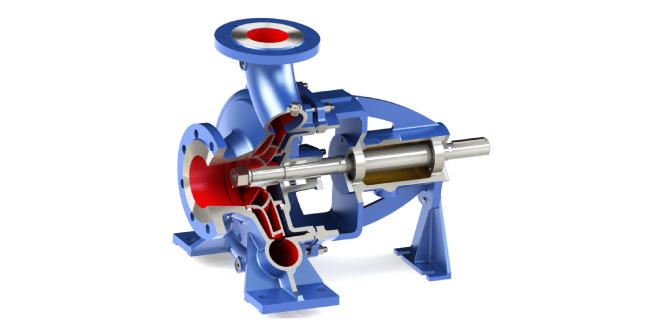

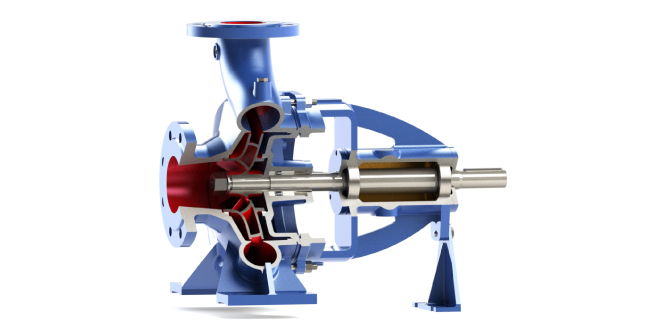

Sectional View

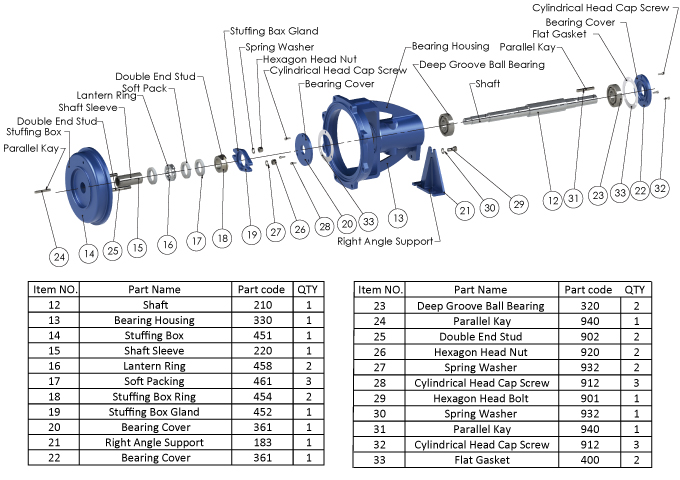

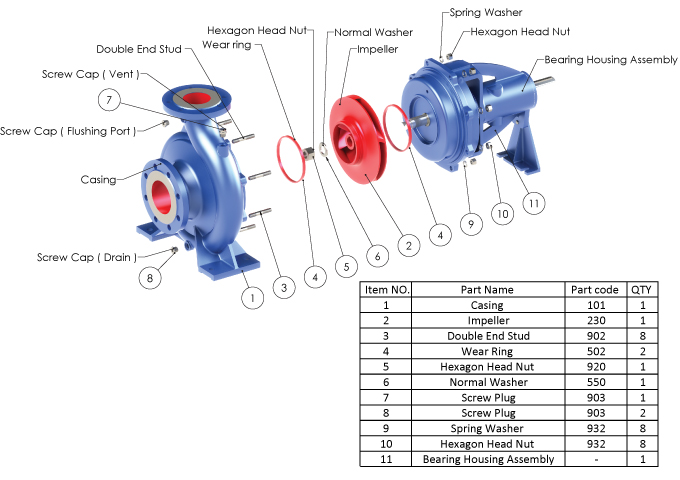

Exploded View

Performance

Documents

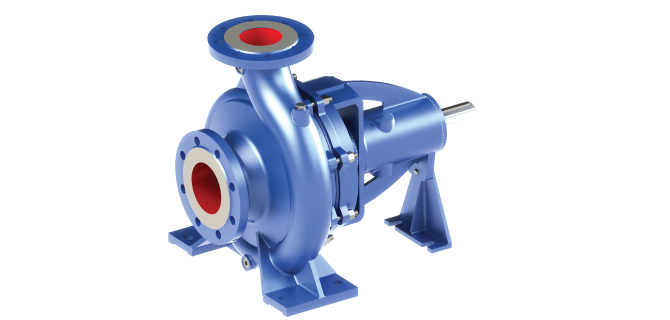

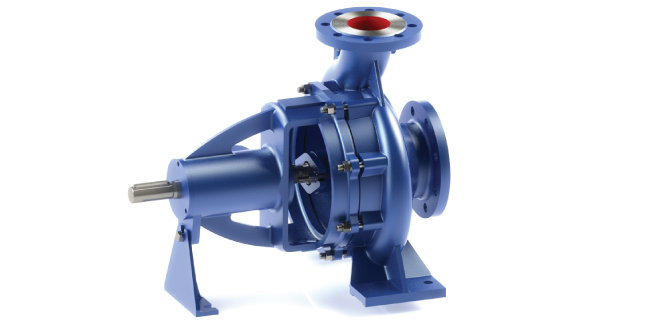

Horizontal, radially split  volute casing pump in back pull-out design, with radial impeller, single-entry, single stage, to Factory Standard.



  • Flow rate (Max.):   1900 m3/hr
  • Differential head (Max.): 95 m
  • Speed (Max.): 3000 rpm
  • Suction pressure rating: Up to 6 bar g
  • MAWP: 16 bar g
  • Operating temperature: -15 ˚C to 120 ˚C
  • Design temperature: 80 ˚C
  • Application

    • Water supply systems
    • Cooling circuits
    • Swimming pools
    • Fire-fighting systems
    • Irrigation systems
    • Drainage systems
    • Heating systems
    • Air-conditioning systems
    • Spray irrigation systems
  • Benefits

    • Operating costs reduced by trimming the impeller diameter
    • Little wear, low vibration levels
    • Casing sealed reliably
    • Optimum material selection
    • Extended selection chart
    • Lower initial cost
    • Ease of maintenance
  • Options

    • A wide range of materials for many applications available
    • Grease or oil lubricated bearings
    • Gland packing and single mechanical seal as options for shaft seal
    • Electric and diesel drivers available
    • Local control panel and instrumentation
    • Various types of base-plates compatible with customer requirements

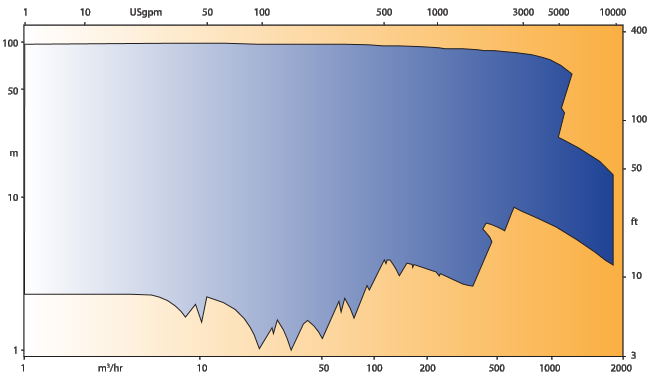

ASK Hydraulic Coverage

OH1 series



Other hydraulics on request



  • Catalogues

    OH1-Catalogue 2012

  • IOM

    OH1-Installation, Operation & maintenance Manual- 2012

  • Data-sheet Forms

    OH1-Compact Data-sheet
